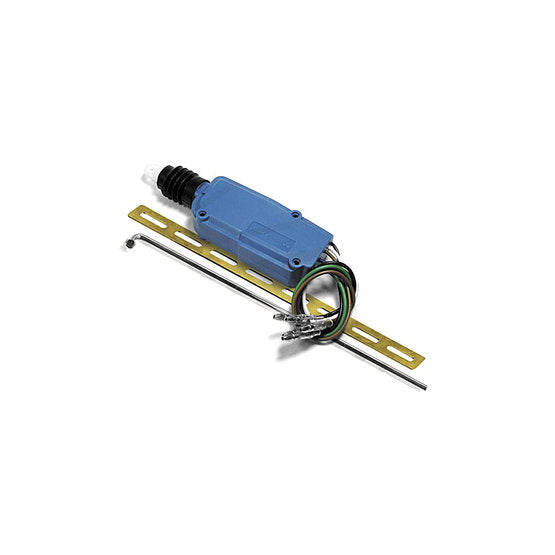

This is the KEETEC S 2805 door lock actuator. A 5 wire actuator for central locking, with 10kg push and pull force.

10kg is the heavy duty option in the KEETEC range. Choose it where the door mechanism is stiff, worn, or simply heavy, and where a lighter actuator would work at first and start failing in cold weather.

The head rotates, which makes it far easier to find a mounting angle inside a door that's already full of glass, wiring and linkages.

Specifications

• 5 wire actuator for central locking
• 10kg push and pull force
• Rotatable head
• Supply voltage 12V, plus or minus 25%
• Clutch rod with Allen screws

In the box: actuator, rod, bearing plate, clamp, screws, brackets and mounting material.

Lighter door? See the S 2705 at 7kg or the S 2205 at 4kg.
