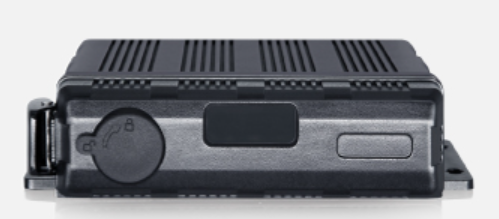

This is the LDS DV454 8 Channel Digital Video Record ( 8 Channel MDVR ).

The LDS DV454 accepts up to 8 camera inputs ( view and record 8 camera inputs ).

Upgrade your fleet management and commercial vehicle safety with the LDS DV454 8-Channel 1080P Intelligent Mobile Digital Video Recorder (MDVR). This industrial-grade, all-in-one vehicle surveillance system utilizes a powerful multi-core processor and advanced AI neural networks to deliver cutting-edge driving assistance, passenger counting, and real-time remote fleet tracking. Built to withstand the harshest environments, the DV454 combines multiple vehicle safety systems into a single, seamless, cost-effective device.

Important Information:

- SD card storage or SSD (solid state drive) are not included
- cameras are not included
- 4G/LTE modem built-in, but SIM card with data plan are not included

Key AI Safety Modules & Functions

ADAS (Advanced Driver Assistance System): Actively prevents road accidents with real-time audio-visual alerts including Forward Collision Warning (FCW), Lane Departure Warning (LDW), Pedestrian Detection (PD), Preceding Car Starting Reminder, and Speed Sign Recognition (SSR).

DMS (Driver Monitoring System): Tracks and monitors driver behavior to eliminate risky driving. Provides immediate fatigue alerts, distraction warnings, and detections for yawning, phone usage, smoking, lack of a driver, and seatbelt/mask non-compliance.

BSD (Blind Spot Detection): Uses AI algorithms to detect pedestrians and obstacles at the front, sides, and rear of the vehicle in real-time, completely eliminating dangerous commercial blind spots.

APC (Automatic Passenger Counting): Implements deep-learning motion tracking to calculate passenger flow statistics with high accuracy, optimizing public transport and transit route auditing.

360° AVM (Around View Monitoring): Integrates 360-degree bird's-eye view stitching from wide-angle cameras for effortless low-speed maneuvering and parking safety. *NOTE: This configuration must be dedicated to this function only, which means all cameras would be specifically for the purpose of 360° monitoring, and not utilized for other camera view purposes.

Premium Features Built for Fleet Managers

IP69K Waterproof Control Box: Ruggedized, dustproof, and heavy waterproof casing ensures high performance under extreme weather conditions and heavy-duty industrial environments.

Real-Time Remote Tracking & Fleet Management: Built-in GPS trajectory tracking with optional 4G and Wi-Fi connectivity. Remotely stream live videos, query historical data, download files via PC/Mobile Client (CMSV6/WIALON platforms), and set up electronic fencing. *NOTE: Requires SIM card with data plan, which is NOT included with the product.

Fail-Safe 15-Second Pre-Recording: Captures crucial video evidence 15 seconds before a triggered event (Motion, G-Sensor, Speeding, Panic Button, or AI Warning alerts) so you never miss an accident context.

High-Efficiency Dual-Stream Storage: Supports H.264/H.265 compression technology to maximize storage space and decrease wireless network data usage. Holds up to a 2TB SSD and 512GB SD card.

Flexible Smart Configurations: Dynamically switches algorithm loads depending on driving context—automatically utilizing AVM+BSD for low-speed maneuvers and transitioning to ADAS+DMS for high-speed highway driving.

Parking Mode

This product has parking mode functionality, with a built in voltage cut-off feature along with a timer on/off feature. These features are there to help protect and preserve the vehicle battery. However, we highly suggest adding a dashcam battery solution, to ensure 100% integrity of the vehicle battery (to avoid a dead vehicle battery).

See the image below for parking mode settings:

Ideal Applications

Perfect for commercial fleets, public transit buses, coach and tourist buses, school buses, cargo vans, heavy construction machinery, agricultural vehicles, fire engines, and emergency response vehicles.

Technical Specifications
