Specifications

• Input Voltage / Current:
  1. Cigarette lighter cable 11.8V~28V 6A Max
  2. Hardwiring cable 11.8V~28V 11A Max
• Output Voltage / Current:
  1. Dash cam port 11.8V ~ 14.2V 3A
  2. Type-C port 5V 3A
• Charging Time (Approx.):
  1. Cigarette lighter cable: Around 100 minutes
  2. Hardwiring cable: Within 70 minutes
• Usage Time (Approx.):
   Approx. 32 hours (based on 3W consumption)
• Battery: LiFePo4 (Lithium iron phosphate)
• Battery Capacity: 12.8 V 7650 mAh

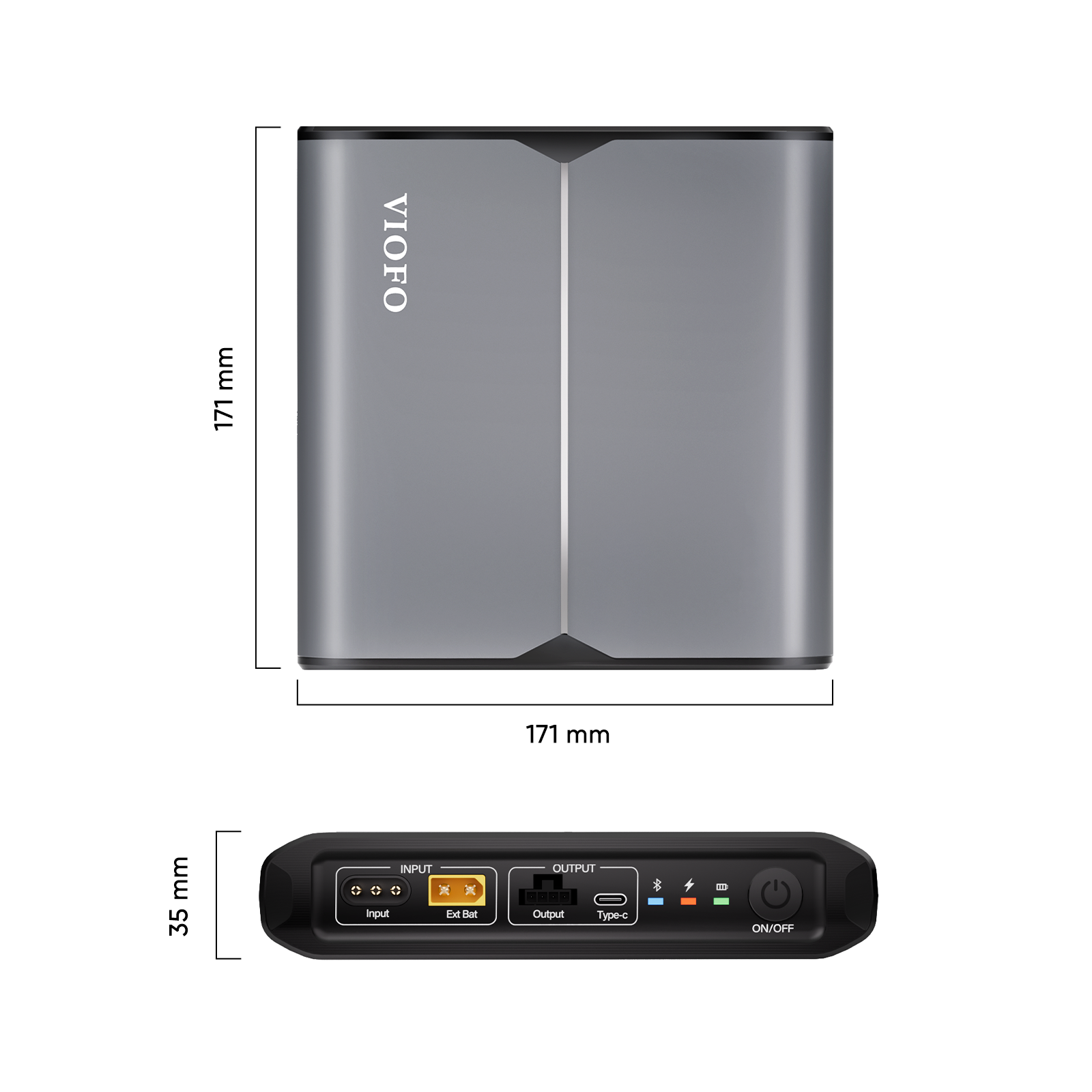

• Dimensions and Weight: 171 mm (L) x 171 mm (W) x 35 mm (H) / 1.22 kg
• Operating Temperature: -20°C ~ 70°C (-4°F ~ 158°F)
• (Cell skin temperature cannot exceed 80°C)
• Storage Temperature: -30°C ~ 90°C (-22°~194°F)

Product Features

• Connect the VIOFO hardwire cable to enable parking mode for the dashcam
• The hardwire output cable can be used as a replacement for the original
   hardwire cable.
• Supports two installation methods:
  - Cigarette lighter installation: Plug the cigarette lighter plug power cable into your
  vehicle’s cigarette lighter;
  - Fuse box installation: Connect the hardwiring power cable into the vehicle’s fuse box.
• After around 100 minutes of charging via the vehicle's cigarette lighter or
  within 70 minutes via the fuse box, the battery pack can power the
  dashcam for up to 32 hours (based on 3W dashcam usage draw)
• Compatible with both passenger car (12V), and heavy duty commercial (24V)
  electrical systems
• While driving, the vehicle charges the BP100, and powers the dashcam
  simultaneously, (Pass-Through Charging).
• When the vehicle is turned off, the BP100 continues to power the dashcam for up to 32 hours.
• With built-in Bluetooth, users can check the battery status in real-time through the
  smartphone app.
• The built-in Battery Management System (BMS) controls current, voltage, balance, and prevents overcharge, over-discharge, overcurrent of the BP100.
• The battery capacity can be increased by connecting expansion batteries.
  It is recommended to connect no more than two expansion batteries.
• The app will pop up a warning alert if BP100 internal temperature reaches 50°C (122°F), and will automatically shut down if BP100 internal temperature exceeds 70°C (158°F) to prevent overheating.
• Battery cycle life: Rated for 1,500 charge/discharge cycles before the battery capacity drops to 80% of the original capacity.
• The Type-C output port of the battery allows users to simultaneously charge a mobile phone while powering the dash cam.
