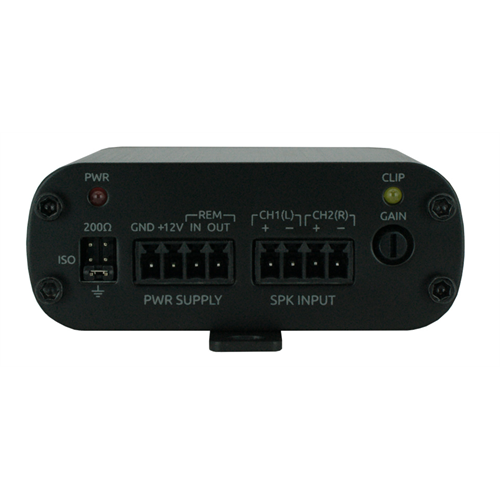

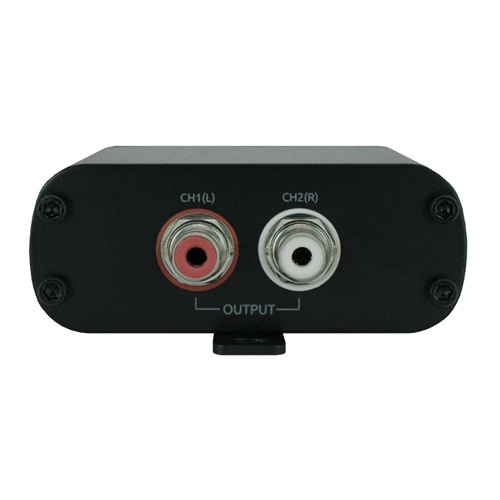

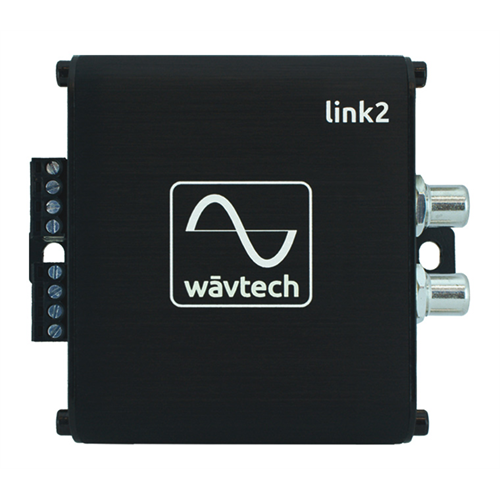

Wavtech LINK2 Line Output Converter, 2 Channel

This is the Wavtech LINK2 2-channel line output converter.

If you need a high-quality 2-channel LOC, but don’t require additional features like summing or auxiliary inputs, the link2 is the perfect solution. It is extremely small so it will fit almost anywhere, simplifying installations.

Like all our products, it has OEM load detect for factory systems that require resistance to function properly. The link2 will accept up to 40V RMS through its speaker inputs, while delivering up to 10V RMS of output at less than 50 ohms.

Features:

• 2-Channel Line Output Converter (LOC)
• Differential Balanced Inputs
• Low Output Impedance
• Variable Gain with Clip LED
• Auto-Turn On via DC-Offset or Audio Signal Detect
• Generated +12V Remote Output
• OEM Load Detect Compatible
• Selectable Ground Isolation
• Professional Grade Panel Mount RCA's
• Locking Detachable Power and Speaker Terminals
• Compact Aluminum Chassis w/Detachable Mounting Tabs
• LinkLD is required when integrating into all amplified (and most non-amplified) Chrysler / Dodge / Fiat / Ferrari / Maserati systems.

Specifications:

• Output Voltage (RCA): >10V RMS
• Output Impedance: <50O
• Input Sensitivity (SPK): 2-20Vrms
• Max Input Voltage (SPK): 40Vrms
• Frequency Response: <10Hz to >100kHz
• THD+N SPK: <0.1%
• S/N SPK: >112dBA
• Turn-On Trigger: +12V, DC-offset & Audio Detect
• Generated +12V Output: >500m
