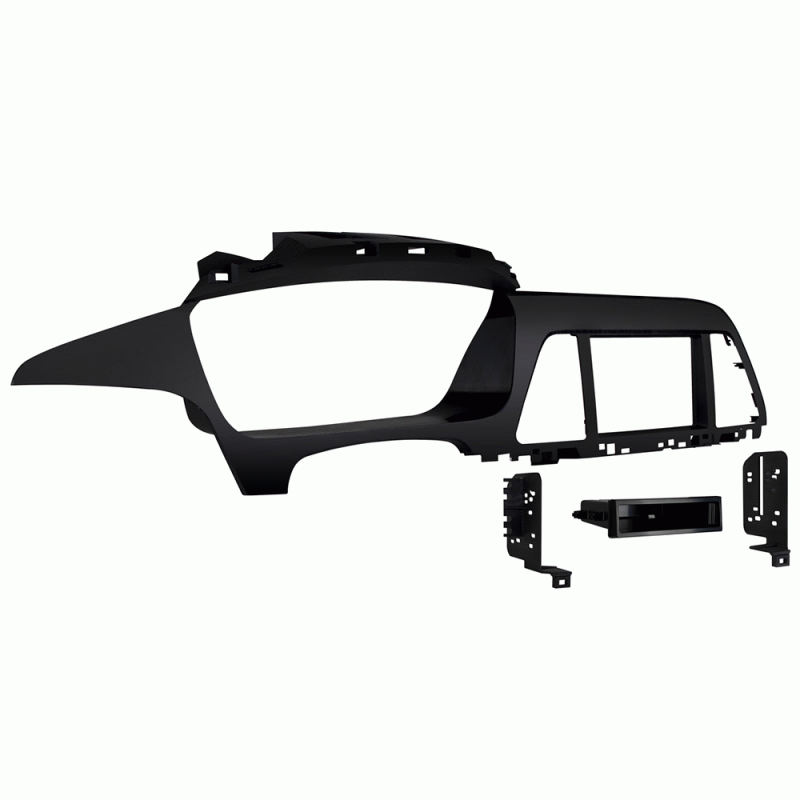

Metra DP-7363B 2015 - 2017 Hyundai Sonata Double and Single DIN Dash Kit

• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Large panel replaces the factory dash panel and provides the space for a SDIN or DDIN radio
• Painted matte black

Wiring and Antenna Connections (sold separately)

• Wiring Harness (Sonata):
  • 70-7304 2015-2016 (1)
  • 70-7306 2017 (1)
  • AX-HYKIA1-SWC (with BlueLink) 2015-2016 (1)
  • AX-HYKIA1-SWC & AX-HYKIA-SPDIF 2015-2016 (2)

(1) Non-amplified models
(2) Amplified models

• Wiring Harness (Sonata Hybrid):
  • 70-7304 2016-2017 (1)
  • AX-HYKIA1-SWC & AX-HYKIA-SPDIF 2016-2017 (2)

(1) Non-amplified models
(2) Amplified models

• Antenna Adapter (Sonata):
  • Not required 2015-2016 (1)
  • 40-KI11 2017 (1)
  • 40-KI10 2015-2017 (2)

(1) Without NAV
(2) With NAV

• Antenna Adapter (Sonata Hybrid):
  • Not required 2016-2017 (1)
  • 40-KI10 2016-2017 (2)

(1) Without NAV
(2) With NAV
