Blackvue CM100GLTE LTE Connectivity Module
Low stock! Only 2 left
Regular price
$197.99 CAD
Sale price
$197.99 CAD
Regular price
Unit price
per
Couldn't load pickup availability

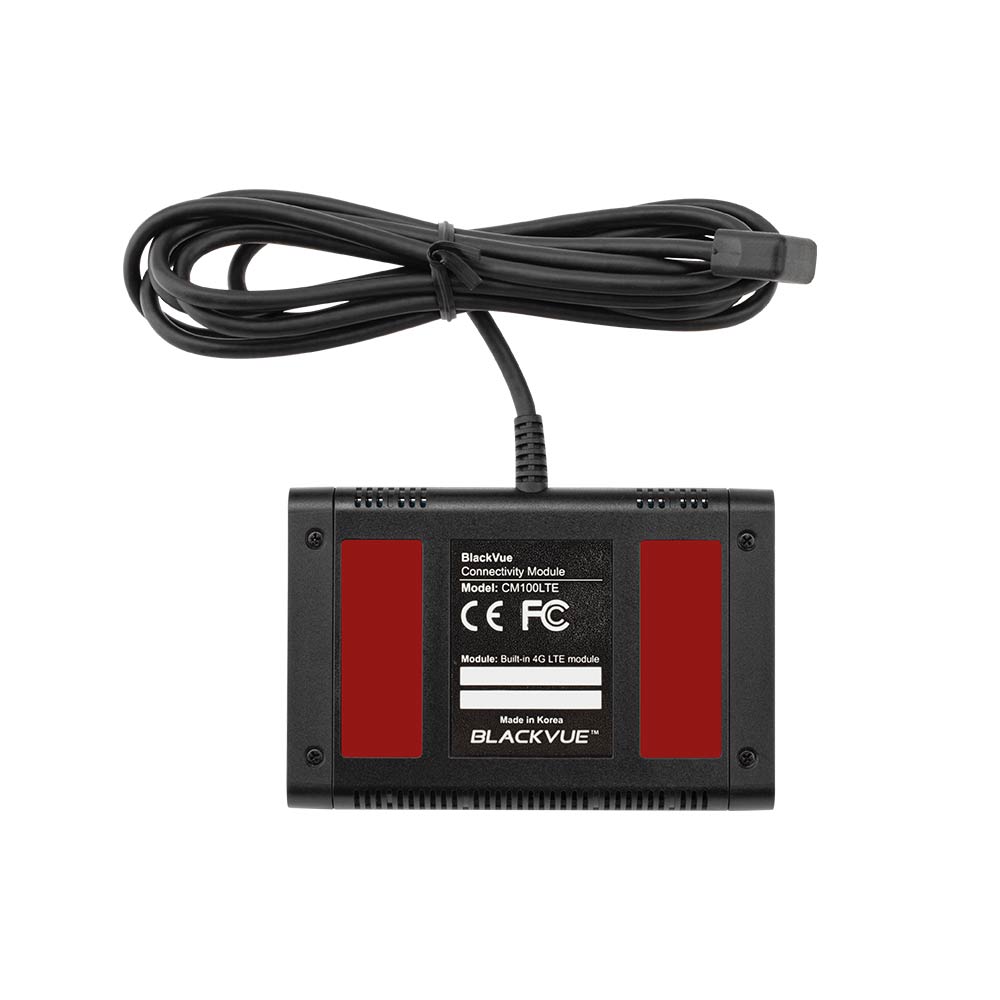

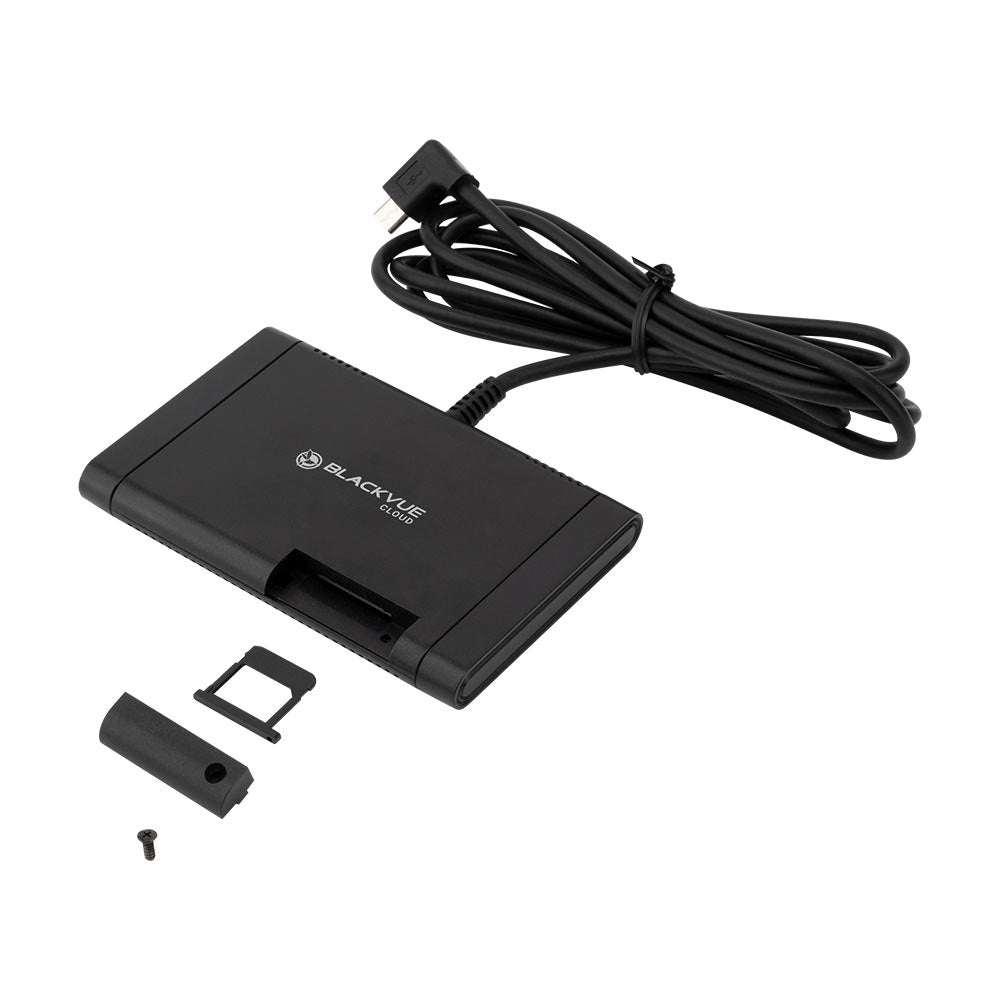

This is the Blackvue CM100GLTE Connectivity Module.
For use with Blackvue cameras.

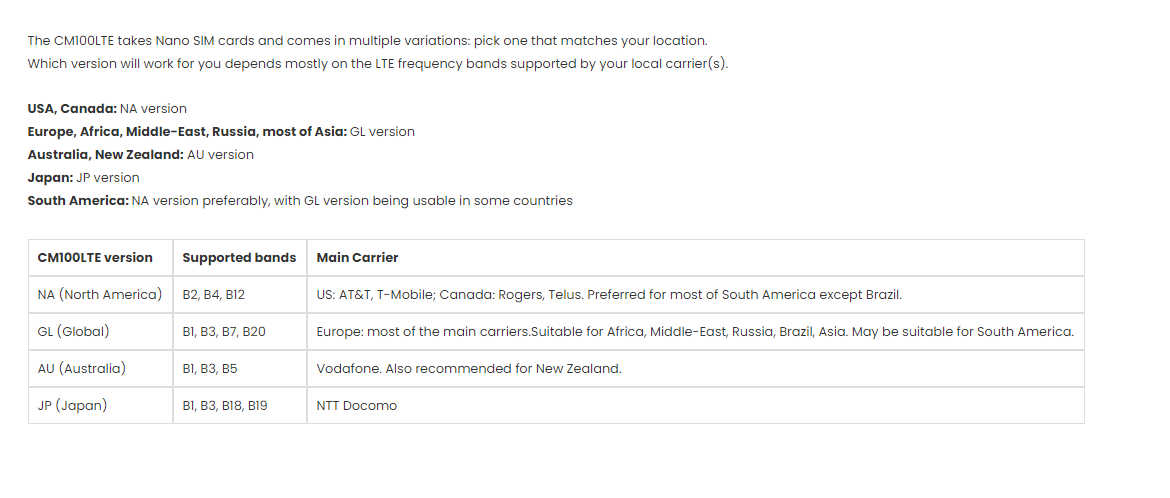

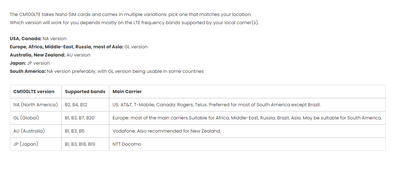

| CM100LTE version | Supported bands | Main Carrier |
|---|---|---|
| NA (North America) | B2, B4, B12 | US: AT&T, T-Mobile; Canada: Rogers, Telus. Preferred for most of South America except Brazil. |
| GL (Global) | B1, B3, B7, B20 | Europe: most of the main carriers.Suitable for Africa, Middle-East, Russia, Brazil, Asia. May be suitable for South America. |
| AU (Australia) | B1, B3, B5 | Vodafone. Also recommended for New Zealand. |
| JP (Japan) | B1, B3, B18, B19 | NTT Docomo |

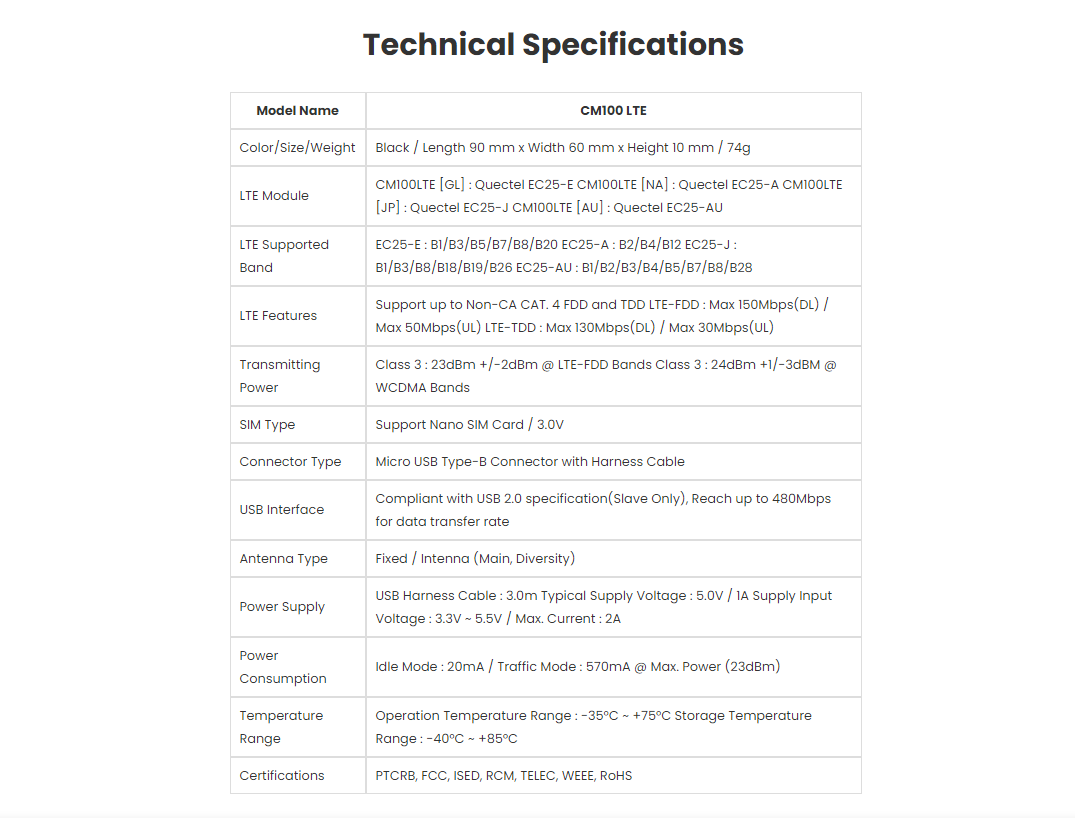

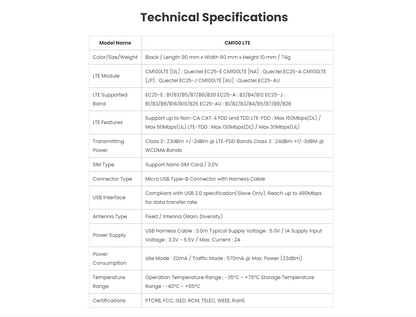

Technical Specifications
| Model Name | CM100 LTE |
|---|---|
| Color/Size/Weight | Black / Length 90 mm x Width 60 mm x Height 10 mm / 74g |
| LTE Module | CM100LTE [GL] : Quectel EC25-E CM100LTE [NA] : Quectel EC25-A CM100LTE [JP] : Quectel EC25-J CM100LTE [AU] : Quectel EC25-AU |
| LTE Supported Band | EC25-E : B1/B3/B5/B7/B8/B20 EC25-A : B2/B4/B12 EC25-J : B1/B3/B8/B18/B19/B26 EC25-AU : B1/B2/B3/B4/B5/B7/B8/B28 |
| LTE Features | Support up to Non-CA CAT. 4 FDD and TDD LTE-FDD : Max 150Mbps(DL) / Max 50Mbps(UL) LTE-TDD : Max 130Mbps(DL) / Max 30Mbps(UL) |
| Transmitting Power | Class 3 : 23dBm +/-2dBm @ LTE-FDD Bands Class 3 : 24dBm +1/-3dBM @ WCDMA Bands |
| SIM Type | Support Nano SIM Card / 3.0V |
| Connector Type | Micro USB Type-B Connector with Harness Cable |
| USB Interface | Compliant with USB 2.0 specification(Slave Only), Reach up to 480Mbps for data transfer rate |
| Antenna Type | Fixed / Intenna (Main, Diversity) |
| Power Supply | USB Harness Cable : 3.0m Typical Supply Voltage : 5.0V / 1A Supply Input Voltage : 3.3V ~ 5.5V / Max. Current : 2A |
| Power Consumption | Idle Mode : 20mA / Traffic Mode : 620mA @ Max. Power (23dBm) |
| Temperature Range | Operation Temperature Range : -35°C ~ +75°C Storage Temperature Range : -40°C ~ +85°C |
| Certifications | PTCRB, FCC, ISED, RCM, TELEC, WEEE, RoHS |
