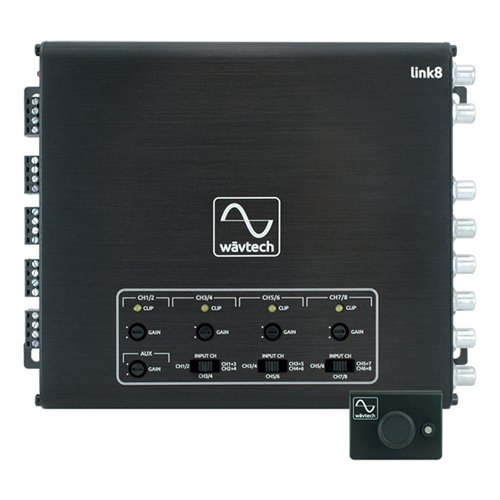

This is the Wavtech LINK8 8-channel line output converter.
Today's factory installed audio systems are becoming more complex. With many of the vehicles controls and operations integrated into the source unit, replacing it is no longer an option. Some vehicles have amplifiers dedicated to each individual speaker. When you aren’t satisfied with the OEM systems sound, these factors make it increasingly difficult when it comes time to upgrade. That is why you need a link8.

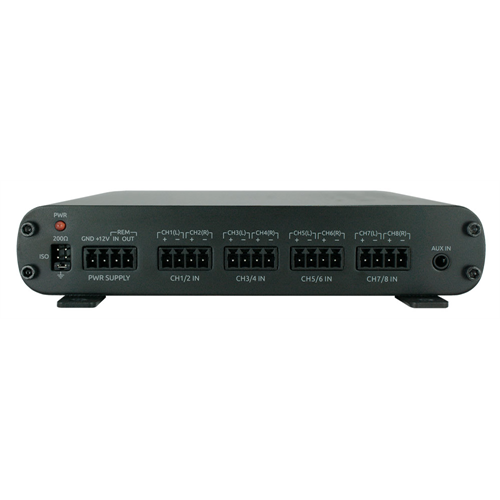

The link8 is about as versatile as an analog integration product can be. The link8 has 8-channels of high level inputs that can be configured in a number of ways. With just 2-channels of input, signal can be achieved at all 8-channels of output. With 4-channels of input, you can have front, rear and subwoofer output. If you are dealing with a complicated OEM system, you can sum sets of input channels for the desired effect. These are just a few of the configurations available. What sets this apart from similar products are the easy to use top mounted switches that control combining, direct and summing inputs. It is no longer necessary to take the unit apart and deal with all of the confusing jumpers just to make adjustments.
Another benefit of the link8 is the auxiliary input. This provides access to your phone or other mobile device through the audio system. The 'Patent Pending' Multifunction Remote Level / Source Control can switch between your subwoofers output level, the volume of the auxiliary source or even serve as a Master Volume Control for your entire system. This is especially useful in OEM systems where speed sensitive volume or equalization are present. You can even program the remote so the sequence and priority of the functions suites your specific system needs.
Features: 8-Channel Line Output Converter 8-Channel Summing Processor Multi-Function Remote Level / Source Control: Master Volume Control AUX Volume Control Independent Ch7/8 Level Source/Function Select AUX 3.5mm Input Differential Balanced Inputs Low Output Impedance Indenpendant Variable Gains with Clip LEDs 2ch/4ch/6ch/8ch Input Select 2/3/4-Way Summing Never Zero Ch7/8 Output with Front & Rear Input Auto Turn-On via DC-Offset or Audio Signal Detect Generated +12V Remote Output OEM Load Detect Compatible Selectable Ground Isolation Professional Grade Panel Mount RCA's Locking Detachable Power and Speaker Terminals Compact Aluminum Chassis w/ Detachable Mounting Tabs LinkLD is required when integrating into all amplified (and most non-amplified) Chrysler / Dodge / Fiat / Ferrari / Maserati systems.

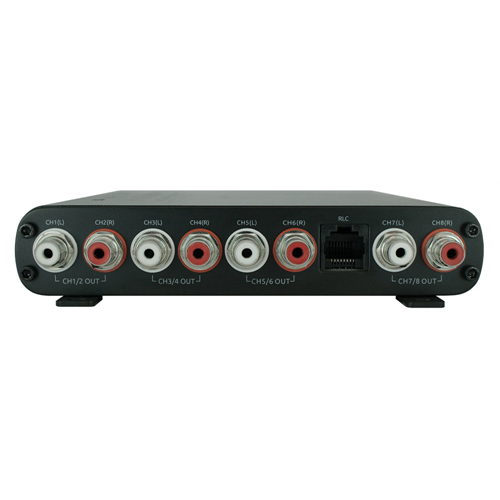

Specifications: Output Voltage (RCA): >10V RMS Output Impedance: <50O Input Sensitivity (SPK/AUX): 2-20Vrms /0.5Vrms Max Input Voltage (SPK): 40Vrms Frequency Response: <5Hz to 100kHz THD+N (SPK/AUX): <0.05% /<0.05% S/N (SPK/AUX): >114dBA />113dBA Turn-On Trigger: +12V, DC-offset & Audio Detect Generated +12V Output: >500mA
